Bijoux

The brief

I designed and engineered an iOS keepsake app where friends give each other hand-painted charms. They collect in a trinket dish, up to three are worn on a bracelet strung across the Dynamic Island, and each one can be passed on.

The product constraint is that you cannot make a bijou for yourself — every object came from a person and carries their note. The engineering consequence is that almost every interesting problem is a systems problem: peer-to-peer transfer between two phones, a render target that isn't your app's process, physical simulation on a 60 Hz budget, and a data model that has to survive schema evolution across builds already on strangers' phones.

This case study is written from the design-engineer seat: the design decision and its implementation are the same decision, made once. Where a visual choice was really a constraint imposed by a framework — or vice versa — that's the interesting part, so it's called out.

Architecture

I made four surfaces share one model. Everything downstream of [Charm] is a projection of it.

Why the model is a flat array, not a graph

A charm's "worn" state is a boolean on the charm rather than a separate collection. That single choice removes an entire class of bug — a charm cannot be in the dish and on the bracelet simultaneously, cannot be orphaned by a failed move, and cannot desynchronise from the island — because there is no move operation. Wearing is a field toggle, and every surface recomputes.

var wornObjects: [Charm] { myCharms.filter(\.isDynamicIslandEnabled) }
var dishObjects: [Charm] { myCharms.filter { !$0.isDynamicIslandEnabled } }
// one array, two projections — the "move" between them is a toggle + re-render

The design system as code

I built the system as three inks, one typeface, and a small set of view modifiers that encode the house style so it can't drift.

Palette

Near-black rather than #000, with a fixed grain overlay, so the surface reads as paper rather than an OLED void. Camel is reserved almost entirely for the bracelet thread — a semantic colour, not a decorative one: if you see gold, something is being worn.

Semantic primitives

Rather than a stylesheet of values, the system is expressed as typed primitives — a button style, a text scale, an art view. A new screen composes them and inherits the house style for free; there is no path to a one-off font size.

// one art primitive — every charm everywhere goes through it
struct CharmArt: View {
    let type: CharmType
    var size: CGFloat = 84
    var body: some View {
        Image(type.imageName)
            .resizable().interpolation(.high).scaledToFit()
            .frame(width: size, height: size * (110.0 / 120.0))  // fixed aspect
            .shadow(color: CharmTheme.charmGlow.opacity(0.35), radius: 5)
    }
}

Type is Quicksand with custom .tightText() / .tightDisplay() modifiers that apply optical tracking per size band — the kind of correction a design system usually loses in handoff, kept here because the person specifying it is the person writing it.

The icon family

give

receive

wear

pass on

photo slot

The detail screen originally used SF Symbols for its actions. Next to hand-drawn charms they read as a different product — a seam between "designed" and "default." Replacing them meant extending the asset pipeline rather than picking a different symbol, which is exactly the kind of fix that only happens when design and build are the same job.

App icon — "Le Fil"

default

dark

tinted

Three variants for iOS's icon modes. The first draft failed on the platform's own geometry: the thread crossed the corner-radius mask and got clipped, and the heart's point sat too close to the bottom edge. Fixed by moving the thread endpoints inside the safe zone, deepening the sag, and giving the heart a 21% bottom margin.

Asset pipeline

I built four art directions before one survived. My final two are code, not handwork — art is compiled, so it's reproducible and cheap to revise.

Pipeline A — drawn icons: SVG → raster

The hand-drawn wobble is a displacement filter applied at author time and baked into the PNG, not computed at runtime. Runtime wobble would cost GPU work on every frame and, worse, would look different at every size. Baking makes imperfection a static asset property.

Pipeline B — painted charms: black-matte alpha keying

Source illustrations arrive as painted objects on solid black. Naive thresholding destroys the painted edge, so alpha is derived from luminance and the colour is then unpremultiplied:

r, g, b = px[x, y]
a = max(r, g, b)                     # black matte → luminance is alpha
if a == 0:
    out[x, y] = (0, 0, 0, 0)
else:                             # unpremultiply, or edges go muddy
    out[x, y] = (r * 255 // a, g * 255 // a, b * 255 // a, a)

This preserves soft brush edges and anti-aliasing that a colour-key would have hard-clipped — the difference between a sticker and a painted object.

The set is deliberately closed: no custom art, no emoji, no photos. A fixed vocabulary keeps every bijou legible at 22 px on the Dynamic Island and guarantees any future surface can render any charm without new assets.

Pipeline C — audio

The background music is synthesised, not licensed: a slow jazz waltz generated with numpy (Rhodes-ish EP, upright bass, convolution-ish reverb tail) and encoded to AAC with afconvert. Playback uses the .ambient category with mixWithOthers, and is skipped entirely when isOtherAudioPlaying — the app never interrupts something the user chose.

Motion system

I didn't animate the worn charms — I simulated them. A damped pendulum per charm, driven by the device's real gravity vector.

Each charm's physical parameters are derived from the same table that describes its art, so a heavy object (the cat, the coffee cup) swings slower and wider than a light one (the star). Design intent and simulation constants are the same data.

// gravity → rest angle, clamped so the strand never inverts
let target = atan2(g.x, -g.y).clamped(to: -0.6...0.6)

// stiffness derived from the art's own sway timing — heavier art, slower spring
let k = 20 + 14 * (5.0 - sway.duration)

// underdamped spring (ζ ≈ 0.42) + angular kick from device rotation
vel += (-k * (angle - target) - 2 * 0.42 * sqrt(k) * vel) * dt
vel += -rotationRate.z * 0.9
angle += vel * dt

Haptics as a material

Every charm touch fires a soft impact at 0.9 intensity — on tap and at the moment a drag picks one up. Contact during a transfer uses a CoreHaptics pattern: a six-event rising ramp into a heavy continuous thud, mirroring Apple's own hand-off feel so the gesture reads as system-level.

Rendering outside your own process

I treated the Dynamic Island as the product's signature surface, and it's the most constrained target in the system.

A Live Activity is not a view your app draws. It's a ContentState you hand to the OS, rendered by a widget extension in a separate sandbox. That imposes hard limits which shaped the design:

• No Canvas. The home screen's gold thread is drawn with an immediate-mode Canvas — unavailable in WidgetKit. The identical curve had to be re-expressed as a Shape so both surfaces share one visual language via two implementations.
• No motion, no timers, no animation loop. The tilt physics cannot extend here.
• Budgeted updates. State pushes are rate-limited by the system, so the strand updates on wear changes — never continuously.

// same wobble recipe as the app's Canvas strand, as a widget-safe Shape
struct IslandSquiggle: Shape {
    func path(in rect: CGRect) -> Path {
        // sample a quadratic bezier, then displace each point along its normal
        let w = sin(arc * 0.16) * 2.1 + sin(arc * 0.31 + 1.7) * 1.1
        p.addLine(to: CGPoint(x: x + nx * w, y: y + ny * w))
    }
}

Schema evolution against installed builds

Adding charm names to the island meant changing a state struct that older builds already running on real phones were encoding. Making the new field non-optional would have broken decode for every in-flight activity:

struct ContentState: Codable, Hashable {
    var wornTypes: [String]
    var wornNames: [String]?   // optional — activities from older builds still decode
}

The renderer then zips names against types and falls back to the charm's display name when the array is absent — forward-compatible by construction.

Reconciling state you don't own

A user reported phantom hearts on their island: stale activities from a previous install, plus relic data from an earlier app under the same bundle ID. The fix treats the OS as the unreliable party — the manager reconciles every activity of its type rather than tracking one handle, adopting the first and ending the rest, and the loader purges charms whose type no longer exists.

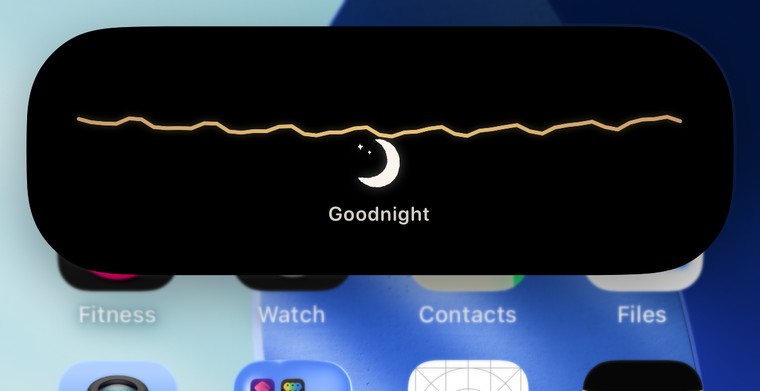

expanded island — the Shape-based thread, charms hanging with their given names

Layout invariants

I fixed two bugs by making the bad state unrepresentable rather than by detecting and correcting it.

A dish where overlap is impossible

Trinkets in the dish overlapped and read as broken. The usual fixes — collision detection, force-directed packing, jitter-and-retry — all fail non-deterministically as count rises, and all require a frame of "wrong" before they correct.

Instead the dish has 12 fixed slots in normalised ellipse space, ordered so a sparse dish still looks scattered rather than clumped. Charm size is then derived from the geometry:

static let slotCount = 12
// size from the tightest slot pair — overlap is arithmetically impossible
let size: CGFloat = min(60, max(34, Self.minSlotDistance(pixelSlots) * 0.92))

The invariant then propagated upward into the product: since the dish has exactly twelve places, twelve became the capacity, and a full dish is now the mechanic that forces you to pass a bijou on. A layout constraint became the economy.

Names that cannot truncate

Long names clipped under a worn charm on the island — a surface where you cannot measure text at render time. Rather than shrink-to-fit forever, the constraint moved upstream to the input:

static let maxNameLength = 26   // fits 3-up on the island at minScaleFactor 0.6

Enforced at compose time, so the render path never has to handle the failing case.

One thread, five surfaces, one hand

The gold thread appears in five places: draped across the app's home screen, in the home-screen widget, in the lock-screen widget, on the expanded Dynamic Island, and — most recently — in the app icon. It has to look drawn by the same hand in all five, at widths from 160 to 1024 points.

The line is a quadratic Bézier with a perpendicular wobble. The naïve version measures that wobble against the curve's parameter, which stretches the waves with the canvas: the same recipe gives a lazy hand-drawn line at 380pt and a taut zigzag at 160pt. Measuring against arc length instead fixes the wavelength in points, so the wobble is the same physical size wherever it is drawn:

let nx = -dy / seg, ny = dx / seg      // perpendicular
arc += seg                              // distance travelled, not t
let w = sin(arc * 0.16) * 2.1 + sin(arc * 0.31 + 1.7) * 1.1

Two harmonics, because one produces a sine wave and two produce something that reads as a hand. The app draws this in a Canvas; WidgetKit has none, so the widgets re-express the identical recipe as a Shape — the constants are copied deliberately, and commented as the reason.

The icon is the exception that proves the rule. It stretches wavelength and amplitude together by a constant, because an icon is read at 60 points: at true scale its ten cycles crimp into a ripple, and it stops looking hand-drawn and starts looking like crimped wire.

Charms that hang from the curve, not under it

The first widget stacked a thread above a row of charms — the two elements never touched, and it read as a rule over a row of icons rather than as jewellery. The charms had to hang from the line, which means the layout has to know where the line actually is:

// the base curve's y at a horizontal fraction — deliberately without
// the wobble: a charm hangs from the thread's path, not from its jitter
func y(atFraction t: CGFloat, in size: CGSize) -> CGFloat {
    size.height * topFraction + 2 * (1 - t) * t * controlDrop
}

Each bijou is offset to that height at its own x, with a jump ring bridging the gap — so the middle charm hangs lowest, following the sag, exactly as it would on a wrist. The same function positions the ring in the app icon, which is generated rather than drawn: the ring is placed at whatever height the squiggle passes its x, so it can never float free of the line it hangs on.

A SwiftUI hit-testing trap

Every charm in the dish opened the last charm's detail sheet. Cause: modifier order. .contentShape(Rectangle()) applied after .position() expands the hit area to the whole container, so the topmost view swallows every tap.

CharmArt(...)
    .contentShape(Rectangle())        // ← must come BEFORE .position()
    .onTapGesture { onTap(charm) }
    .position(pos)

Assistive paths

Two places where the interface's own conceits — a gesture, and a text field doing double duty — didn't survive contact with VoiceOver, and had to be answered in the model rather than patched in the view.

The same charm, announced from two different fields

A bijou's words live in name when someone composes one, but the three starter bijoux carry theirs in note with an empty name. Sighted users never notice — each surface reads whichever field it was written to. A screen reader, reading one label for all of them, announced half the collection as nothing at all.

Worse, a hand-drawn charm keeps a stock charmType underneath its art, so a hand-drawn chihuahua announced itself as "Heart." The art was the whole gift, and the label described the leftover scaffolding.

var spokenWords: String {   // one reader for both worlds
    if !name.isEmpty && !note.isEmpty && name != note { return "\(name), \(note)" }
    return name.isEmpty ? (note.isEmpty ? charmType.displayName : note) : name
}
var spokenKind: String {    // the art decides, not the stale type
    artData == nil ? "\(charmType.displayName.lowercased()) bijou" : "hand-drawn bijou"
}

Putting both on the model rather than in each view means every surface that gains a label later — widget, island, detail sheet — inherits the correct one for free. The bug was never a missing accessibilityLabel; it was that no single field held the answer.

A ceremony that needs a second door

Sealing a bijou is a 1.15-second press-and-hold: the haze blooms under your thumb, and only then do you name the word. It is the most deliberately physical moment in the app — and a timed continuous press is exactly what Switch Control and VoiceOver cannot perform.

The tempting fix is to weaken the gesture for everyone, or to add a permanent button beside it and let the ceremony compete with a shortcut. Instead the button exists only when assistive technology is running:

if voiceOver || switchControl {
    Button { sealCeremony() } label: { Text("seal it") }
        .accessibilityHint("seals it behind the haze — you name the word next")
}

Everyone reaches the same state by the route that suits them, and neither route is a degraded copy of the other.

Transport & sync

I built three delivery paths, chosen by what the recipient has — and one rearchitecture driven by research rather than by code.

Addressing by record name, not by query

Claim codes are fetched by ID rather than queried by field. CloudKit requires an explicit queryable index for field lookups — an operational dependency that fails at exactly the wrong moment. Making the code the primary key removes the index entirely, and deletion after read gives one-time semantics for free:

let id = CKRecord.ID(recordName: "gift-\(normalize(code))")
let rec = try await publicDB.record(for: id)   // direct fetch, no index
_ = try? await publicDB.modifyRecords(saving: [], deleting: [id])

A password rule that fell out of the normaliser

Making the magic word the primary key has a consequence. The word a person types and the word their friend types have to resolve to the same record name across keyboards, autocorrect and accents, so wordKey folds to Latin, uppercases, and keeps only letters, digits and dashes. Everything else is discarded before the lookup.

Which means a symbol cannot be part of a secret here. Type our song! and the ! never reaches the key — two words differing only by punctuation are the same word. So when these moved from generated codes to words people choose, the strength rule could not be the usual "add a special character":

// letters, ≥1 digit, ≥6 characters — digits survive the fold, symbols don't
if !key.contains(where: \.isNumber) { return "add a number so no one can guess it" }

The requirement is downstream of the normaliser, not a style choice: a digit is the only extra entropy that survives to the key. Guidance is worded as coaching rather than validation, and the receiving side stays permissive — it folds whatever you type and looks it up, so being generous to the person entering a word costs nothing while the strength lives where the word is made.

A framework that traps instead of throwing

CKContainer(identifier:) does not return nil or throw when the binary lacks the iCloud entitlement — it crashes the process. Since simulator builds are compiled with signing disabled, container creation had to become lazy and gated behind a crash-safe probe:

private var cloudCapable: Bool { FileManager.default.ubiquityIdentityToken != nil }

private func containerIfAvailable() -> CKContainer? {
    guard cloudCapable else { return nil }   // probe before touching CKContainer
    ...
}

The rearchitecture: researching Pokémon GO

Touch-to-give was unreliable enough to feel broken. Rather than tune it, the question became how a shipped product at scale solves the same problem. Pokémon GO's trade flow turns out to have no proximity magic at all: a 100 m GPS check, a pre-existing friendship, both players tapping Confirm, then a long unhurried ceremony.

Bijoux was doing the inverse — straining to detect an intimate physical moment while never modelling the human one. The audit of the transport layer then found four defects that tuning would never have fixed:

• A 3 cm UWB threshold — below the sensor's ±10 cm noise floor, so the trigger was effectively random.
• Peers invited indiscriminately: the advertised role was written into discovery info and never read, so two senders would connect to each other.
• The ranging-failure path called sendCharm() directly — any UWB error transferred the charm to whoever happened to be connected, with no touch at all.
• Identity was UIDevice.current.name, not the user's Bijoux username.

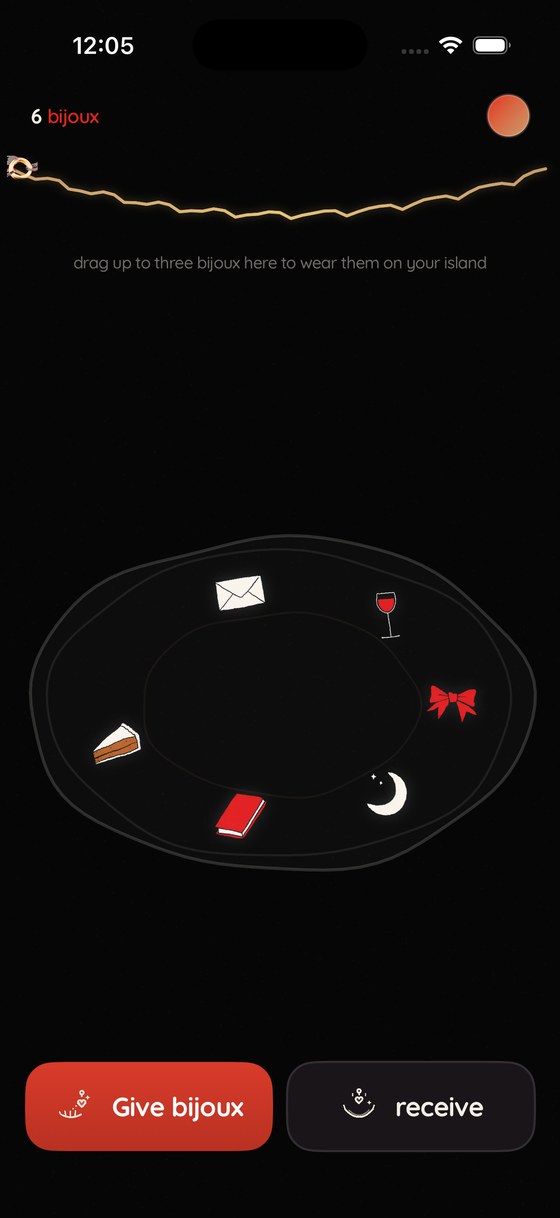

giver — tap a name to offer

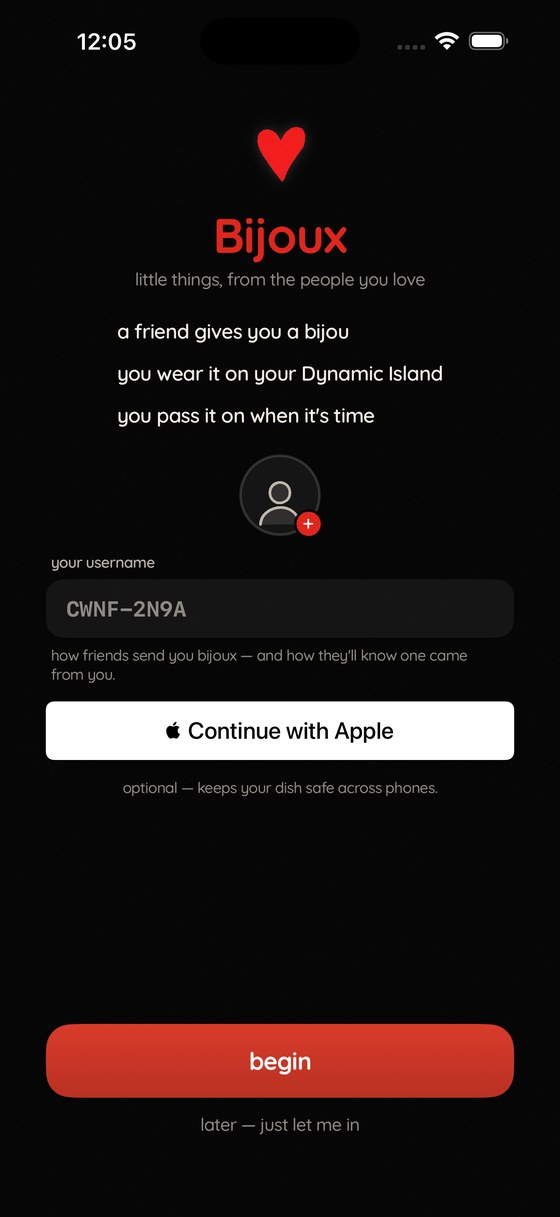

receiver — accept or decline

Release engineering

I shipped 31 builds with no CI, and one rule I set for myself eliminated a whole category of phantom bug.

The build pipeline

# sources live in iCloud Drive, which breaks xcodebuild's working directory
rsync -a --delete "$SRC/Charms/" "$DST/Charms/"

# simulator builds skip signing entirely — hence the CKContainer guard above
xcodebuild -scheme Charms -sdk iphonesimulator CODE_SIGNING_ALLOWED=NO build

Screens

Current state, build 31. Click to enlarge.

Decision log

Every significant decision I made: what prompted it, what I decided, and how I implemented. Filter by area.

Failure modes

The bugs that taught me the most, and what I changed structurally because of each.

<key>manageAppVersionAndBuildNumber</key>
<false/>   <!-- or the export renumbers the build behind you -->

What's next
